We provide a professional customized replacement solution for the 0566716 AC58/1212EK.72SGX encoder, developed to ensure complete compatibility with original Baumer specifications. Our solution is based on a 1:1 non-standard customization process, which guarantees that the mechanical design, electrical connections, and interface protocols are identical to the original. With a streamlined production cycle of just 10–15 working days, we significantly reduce delivery time compared to traditional supply chains. This efficiency is especially critical in the wind energy sector, where maintenance delays can lead to substantial downtime and financial losses. By selecting our solution, customers gain a reliable supply option, faster turnaround, and a cost-effective alternative without sacrificing quality or performance.
The 0566716 AC58/1212EK.72SGX replacement encoder is built on the proven Baumer AC58 series platform, designed for absolute accuracy and reliability in wind turbine applications. It is a multiturn encoder with SSI communication, utilizing an optical sensing method that delivers excellent resolution and long-term stability. With a maximum resolution of 14 bits singleturn and 16 bits multiturn, the encoder provides precise feedback under demanding operating conditions. The product features a clamping flange for secure mounting and supports electronic zero-point adjustment, simplifying installation and commissioning. Additional features include a counting direction input and optional incremental outputs, allowing flexible integration into existing systems. One of its key advantages is maximum resistance to magnetic fields, ensuring stable performance even in environments with strong electromagnetic interference such as wind turbine nacelles, power generators, and heavy-duty industrial equipment. This makes the encoder highly reliable for long-term operation in harsh environments, contributing to the stability and efficiency of wind energy systems.

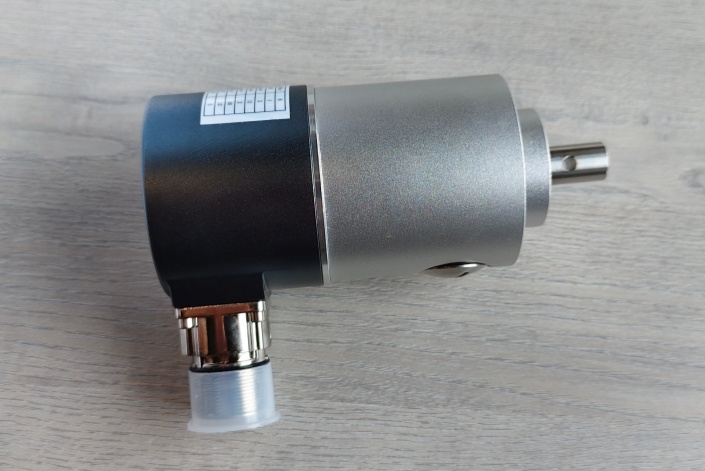

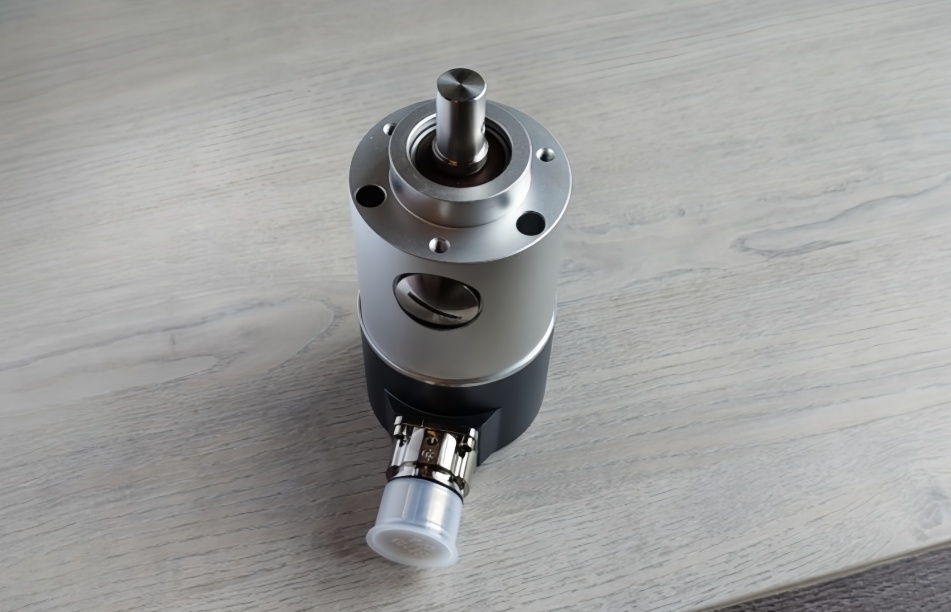

Replacement model real product photo.
Technical Data
Electrical Ratings
Parameter
Values
Voltage supply
10…30 VDC5 VDC ±10 %
Reverse polarity protection
Yes (10…30 VDC) / No (5 VDC)
Consumption w/o load
≤50 mA (24 VDC)≤80 mA (5 VDC)
Initializing time typ.
20 ms after power on
Interface
SSIIncremental A 90° B (optional)
Function
Multiturn
Steps per revolution
≤16384 / 14 bit
Number of revolutions
≤65536 / 16 bit
Absolute accuracy
±0.025°
Sensing method
Optical
Code
Gray or binary
Code sequence
CW/CCW coded by connection
Inputs
SSI clock; Control signals UP/DOWN inv. and zero; SSI data outputs RS422
EN 60068-2-6Vibration ≤0.75 mm - 10 - 58 Hz, 10 g - 58 - 2000 HzEN 60068-2-27Shock 200 g, 6 ms
Weight approx.
400 g
Connection
Connector M23, 12-pinConnector M12, 8-pinCable 1 m
