The FG4SS-1000G-90G-NG encoder is another legacy model that has been discontinued and is no longer available for direct purchase. Many customers in the metallurgical and steel industry continue to depend on this model, which creates major procurement challenges. To solve this problem, we offer fully customized replacement solutions based on 1:1 specifications. These alternatives are designed to be plug-and-play, ensuring compatibility with existing equipment and eliminating the need for redesign. With our fast production process, customers can expect delivery within 15 working days, helping reduce downtime and procurement pressure.
This model was particularly valued in heavy-duty industrial settings, where robust performance and precision were essential. The FG4SS-1000G-90G-NG provided accurate incremental feedback, supporting automation systems, steel rolling equipment, and industrial drives operating under extreme conditions. Despite being out of production, many facilities continue to rely on it because of its proven stability and reliability. Our replacement encoders are built to replicate these critical characteristics, providing a secure and long-term solution for ongoing operations.

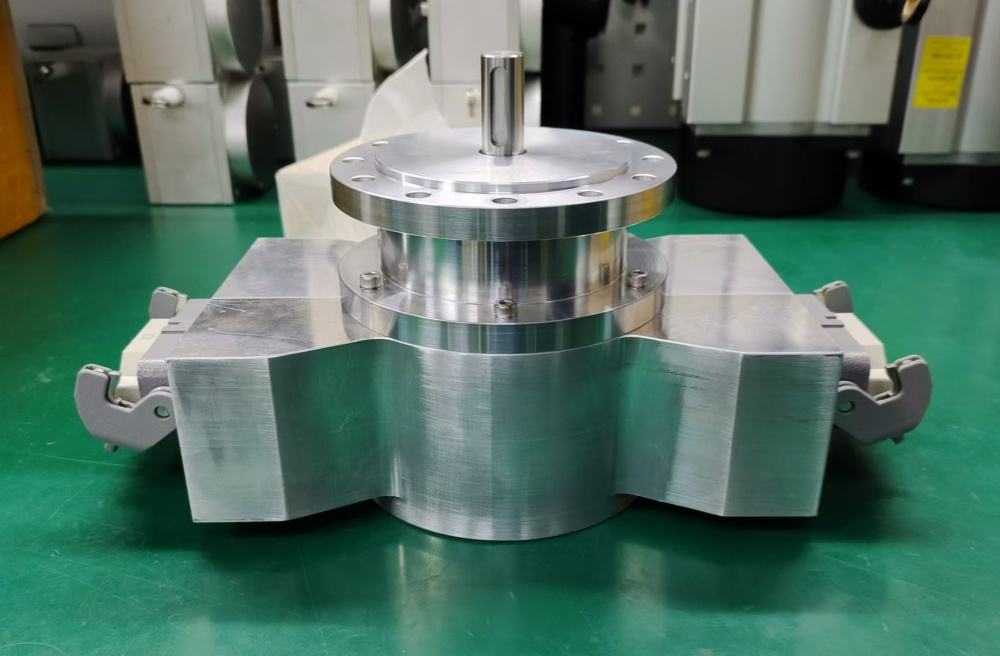

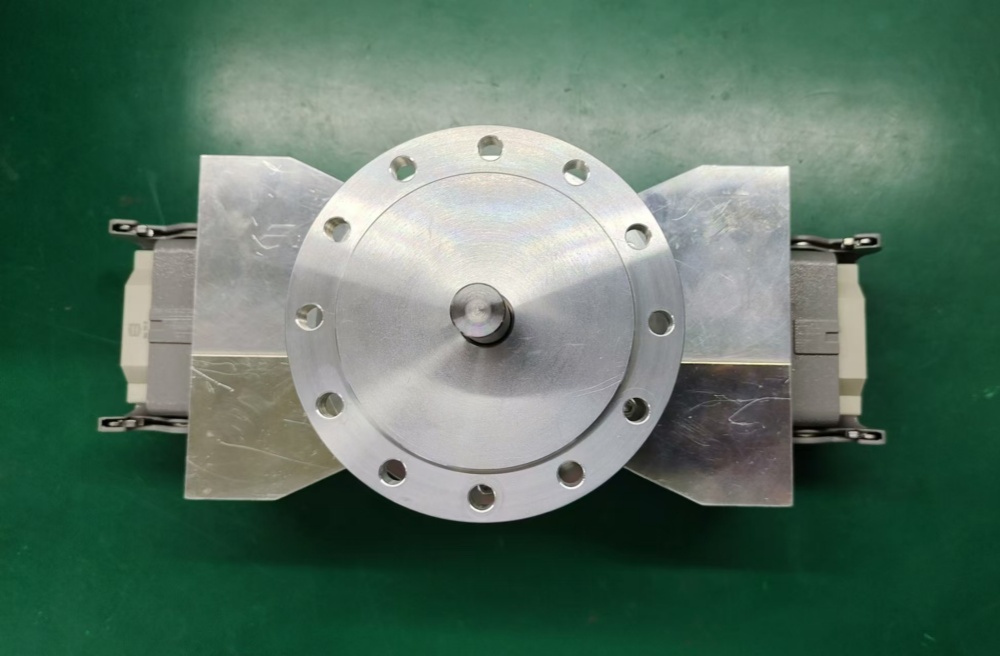

Replacement solution reference image.
Technical Datasheet
Pulse rates
| Category | Value |
|---|---|
| Standard pulse rates | 500, 600, 1000, 1024, 1200, 2000, 2048, 2400, 2500 |
| Special pulse rates | 4000, 4096, 4800, 5000, 8192, 10000, 12000, 16000, 16384, 20000, 25000(further pulse rates according to customers specification) |
Connection data
| Parameter | Details |
|---|---|
| Supply voltage | 12 V … 30 V DCFor UL and CSA Class 2 supplied |
| No load-current | approx. 50 mA at 24 V |
| Outputs | Current limited, short-circuit proof push-pull line driver with integrated impedance adaptation for 30 to 140 Ω lines. |
| Pulse height (HTL) | approx. as supply voltage, output saturation voltage < 0.4 V at Iₗ 30 mA |
| Output current | max. 150 mA at 24 V (observe derating) |
| Internal resistance | 75 Ω bei 24 V |
| Slew rate | 200 V / μs with Cₗ 100 pF |
| Duty cycle | 1:1 ± 3 % for standard pulse rates1:1 ± 5 % for special pulse rates up to 25000 pulses |
| Square wave displacement 0°, 90° | 90° ± 3 % for standard pulse rates90° ± 5 % for special pulse rates up to 25000 pulses |
| Max. frequency | 200 kHz, Higher max. frequency on request |
Special output voltage 5V (TTL)
| Parameter | Details |
|---|---|
| Pulse height | 5V, RS422-compatible (TIA/EIA - Standard) |
| Supply voltage | 12 … 30 V DC (optional: 5 V DC)For UL and CSA Class 2 supplied |
