The CEV65M-10135 is an absolute encoder featuring a 4096/4096 resolution and SSI interface, commonly used in industrial automation, motion control, and precision machinery. For customers who encounter sourcing difficulties with this model, we provide a fully customized replacement solution. Our replacement unit is designed to replicate the original encoder’s parameters 1:1, including mechanical dimensions, resolution, and SSI communication protocol, allowing for seamless integration into existing systems without any modification.
This replacement solution is produced with a focus on reliability and rapid availability. While the original model may involve uncertain supply and extended lead times, our customized encoders can typically be delivered within 7–10 working days. Each unit is subjected to strict quality control and engineering validation to ensure precise multi-turn measurement, consistent signal integrity, and long-term durability under demanding industrial conditions.

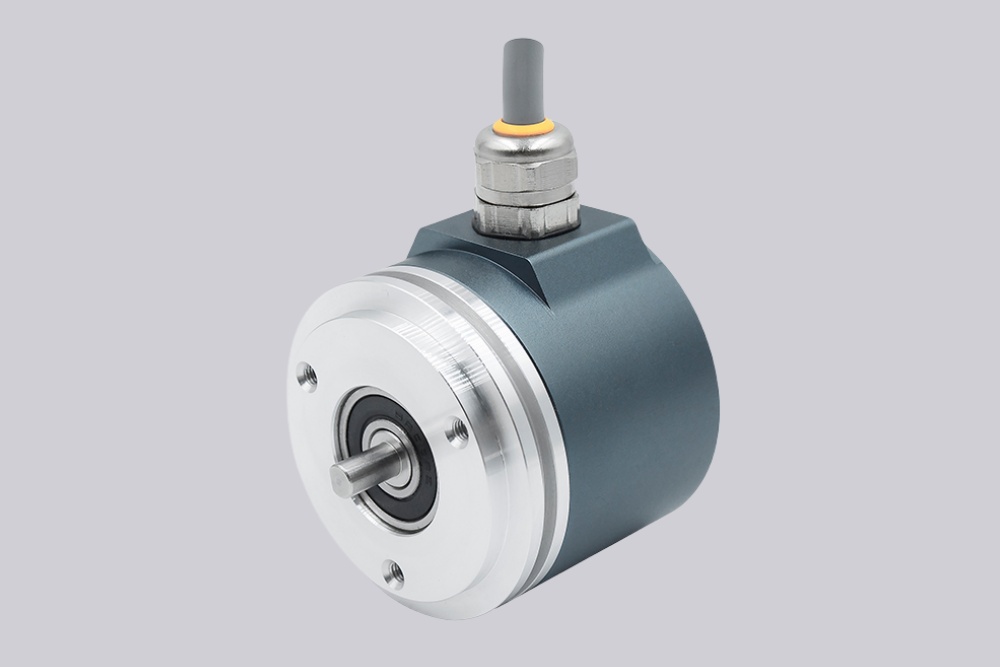

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 4,096,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| PARAMETERIZABLE | PROG. |
| INTERFACE | SSI |
| CODE | PROGRAMABLE |
| SUPPLY VOLTAGE | 11 - 27V |
| OUTPUT LEVEL | RS422 |
| PROTECTION Class | IP65 |
| OPERATING TEMPERATURE | -60°C |
| FLANGE TYPE | Z850 |
| SHAFT TYPE | 12KEYWAY/4 |
| CONNECTOR-POSITION | PG AXIAL |
| cable length (m) | 6.000 M |
| PINOUT NO. | 31677C |
| OPTIONS ENC | FRPRESET 1+2PROGRAMABLE |
| DRAWING NO. | 04C - EV6.5M - M0259 |
| VERSION NO | 158 |
| PARAMETER FILE | CE831 - 095 |
| FIRMWARE NO | 437860 |
