The 173-00001 absolute encoder is a specialized model featuring dual-signal output with PROFIBUS and SSI, designed for applications requiring both high-precision serial data and robust fieldbus communication. To support customers who face procurement difficulties, we provide a customized replacement solution that replicates the mechanical dimensions, resolution, and functional parameters of the original encoder. Our approach allows clients to maintain 1:1 application compatibility, while benefiting from a reliable delivery schedule of 7–10 working days, minimizing downtime and production risks.
For this model, our replacement solution is developed by selecting either the PROFIBUS or SSI interface depending on the actual usage requirements. By focusing on the specific communication protocol used in the system, we ensure stable integration without unnecessary complexity, while still maintaining all the critical performance aspects expected from the original encoder.

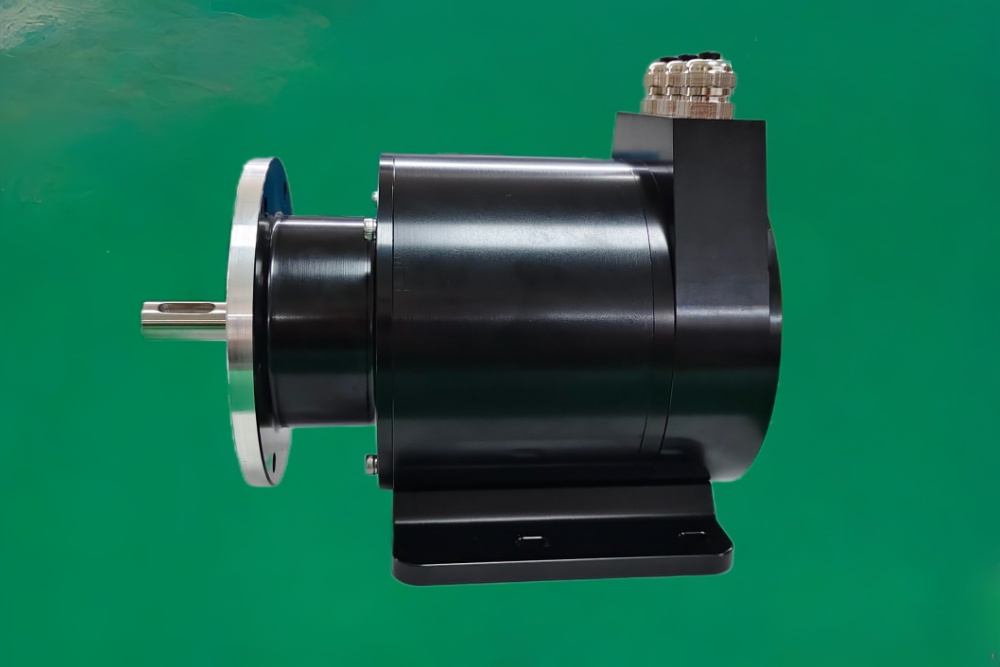

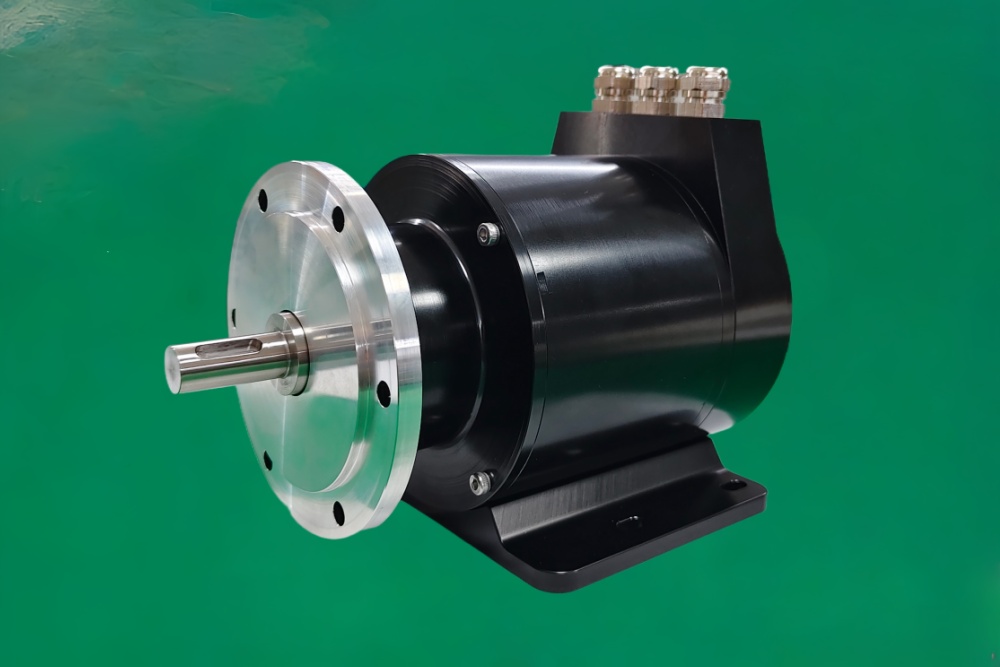

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 4,096,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| INTERFACE | PROFIBUS DP+-SSI |
| CODE | PROGRAMABLE |
| SUPPLY VOLTAGE | 11 - 27V |
| OUTPUT LEVEL | RS485 |
| PROTECTION Class | IP67 |
| OPERATING TEMPERATURE | -20…+70°C |
| FLANGE TYPE | ZB85 |
| SHAFT TYPE | 14KEYWAY/33 |
| CONNECTOR TYPE | 3XPG9 |
| CONNECTOR - POSITION | PG RADIAL |
| PINOUT NO. | TR - EC - E - TH - GB - 0043 |
| OPTIONS ENC | 12MBAUDHD HOUSINGPNO - PROFILE CLASS.2 |
| DRAWING NO. | 04 - 503 - 001 |
| VERSIONNO | 058 |
| FIRMWARE NO | 437826 |
