The CMV58S-00002 SSI absolute encoder with a resolution of 4096/1 is widely used in industrial automation, robotics, and precision machinery for high-accuracy position feedback. To assist customers facing sourcing challenges or long lead times, we provide a customized replacement solution that replicates the original encoder’s parameters 1:1. This includes mechanical dimensions, resolution, and the SSI communication protocol, ensuring seamless integration into existing systems without modifications. The typical production cycle is 7–10 working days, helping customers minimize downtime and maintain continuous operations.
This replacement solution is ideal for applications requiring reliable serial synchronous interface (SSI) communication, such as CNC machines, automated assembly lines, and packaging equipment. Engineered for stability and durability, it delivers consistent performance and precise feedback even in demanding industrial environments, maintaining the same level of accuracy as the original unit.

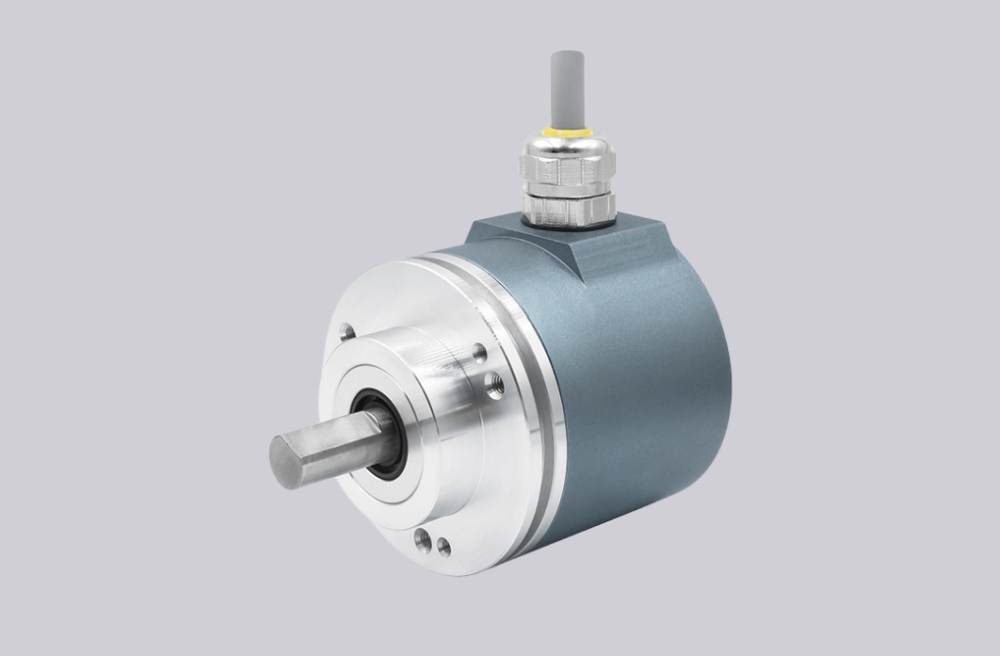

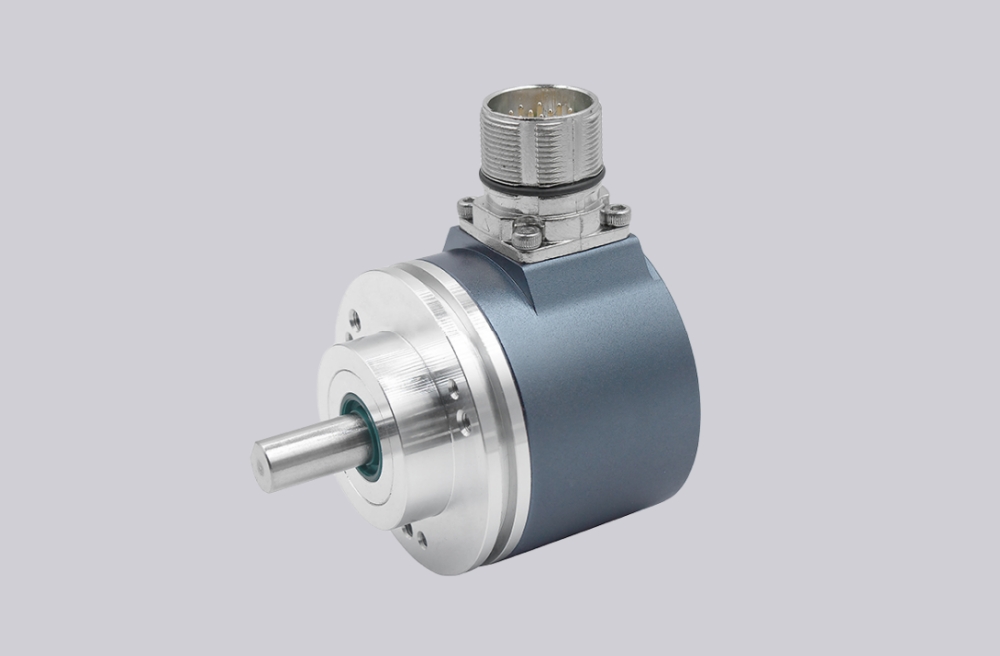

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 4,096,000 |
| NO. OF REVOLUTIONS | 1,000 |
| INTERFACE | SSI |
| CODE | PROGRAMMABLE |
| SUPPLY VOLTAGE | 11 - 27V |
| OUTPUT LEVEL | RS422 |
| PROTECTION Class | IP65 |
| OPERATING TEMPERATURE | -20 - +70°C |
| FLANGE TYPE | 23B 3.3xM3 + 3xM4 |
| SHAFT TYPE | 10FLY1/5 |
| CONNECTOR TYPE | CONTACT 1.12P |
| CONNECTOR - POSITION | CONNECTOR RADIAL ON HOUSING |
| PINOUT NO. | ST3209 |
| OPTIONS ENC | FRPRESET 1PROGRAMMABLE |
| DRAWING NO. | 04 - CM/SM - S5 - M0002 |
| VERSION NO | 000 |
| FIRMWARE NO | 437A01 |
