CEV65M-50003 (ALT: 171-50003) Profibus Absolute Encoder Replacement Solution
The CEV65M-50003 Profibus absolute encoder is a high-precision model widely used in industrial automation, motion control, and production machinery. For customers facing long lead times or sourcing difficulties, we provide a customized replacement solution designed with 1:1 parameter matching. All critical specifications—including resolution, mechanical dimensions, and Profibus communication protocol—are carefully replicated to ensure seamless integration into existing systems without modifications. Our standard production cycle is 7–10 working days, enabling fast delivery and minimal downtime.
This replacement encoder is especially suitable for applications requiring stable Profibus connectivity and accurate position feedback, such as conveyor systems, packaging machinery, and robotics. Built for durability and reliability, it provides consistent performance in demanding industrial environments, maintaining the precision and functionality of the original model.

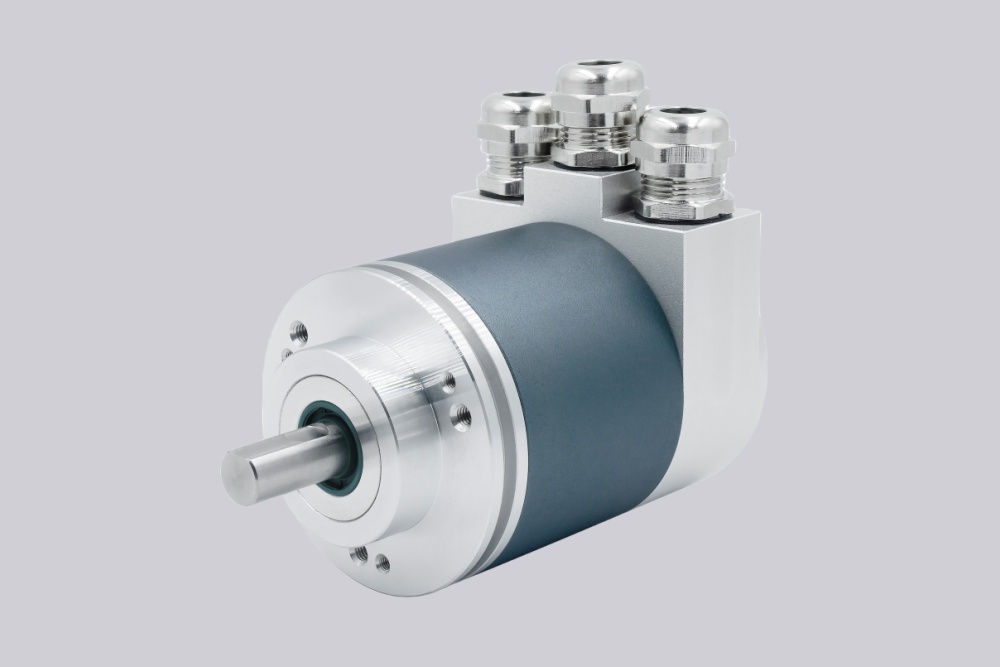

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 8,192,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| INTERFACE | PROFIBUS DP |
| CODE | PROGRAMABLE |
| SUPPLY VOLTAGE | 11 - 27V |
| OUTPUT LEVEL | RS485 |
| PROTECTION Class | IP65 |
| OPERATING TEMPERATURE | -30 - +80°C |
| FLANGE TYPE | ZB36 |
| SHAFT TYPE | 10B/19.5 |
| CONNECTOR TYPE | 3XPG9 |
| CONNECTOR - POSITION | PG RADIAL |
| PINOUT NO. | TR - CE - IG - 00 - 017 |
| OPTIONS ENC | 12MBAUDPRO - PROFILE CLASS.2 |
| DRAWING NO. | 04 - CE - 05 - M5 - M0003 |
| VERSIONNO | 000 |
| FIRMWARE NO | 437826 |
