The CEV65M-03314 (ALT:110-03314) Parallel Encoder Replacement Solution provides a reliable and precise alternative for users looking to maintain or upgrade their existing parallel absolute encoder systems. Each unit is developed with 1:1 parameter matching, including mechanical dimensions, resolution, and parallel output configuration, ensuring seamless integration into current automation systems without the need for hardware modifications or software adjustments. With a standard production and delivery time of 10–15 working days, this solution offers a fast and dependable option for replacing discontinued models or addressing spare part shortages.

Constructed with high-quality materials and advanced manufacturing techniques, this parallel encoder ensures stable signal output, accurate position feedback, and long-term operational reliability. It is suitable for various industrial applications, including automated production lines, robotics, conveyor systems, and motion control equipment, where precision and durability are essential.

Our parallel replacement encoders have been successfully deployed across Europe, South America, the Middle East, Southeast Asia, and other regions. Customers value their consistent performance, robust construction, and cost-effective maintenance benefits, making them an ideal choice for sustaining smooth system operation and extending the service life of industrial automation equipment.

CEV65M-03314 (ALT:110-03314) Parallel Encoder Replacement Solution-LinkChina

Technical data

Parameter ItemValue
NO. OF STEPS/REV4,096,000
NO. OF REVOLUTIONS4,096,000
PARAMETERIZABLEPROG.
INTERFACEPARALLEL PUSH PULL
CODEPROGRAMABLE
SUPPLY VOLTAGE11 - 27V
OUTPUT LEVEL11 - 27V
PROTECTION ClassIP65
OPERATING TEMPERATURE-20 + 70°C
FLANGE TYPEZ880
SHAFT TYPE12FL/24
CONNECTOR TYPECONTACT 26P
CONNECTOR - POSITION90°ANGLED
PINOUT NO.ST364B
MATING PLUGNO
OPTIONS ENCF/R
OPTIONS ENCLATCH
OPTIONS ENCPRESET 1 + 2
OPTIONS ENCPROGRAMMABLE

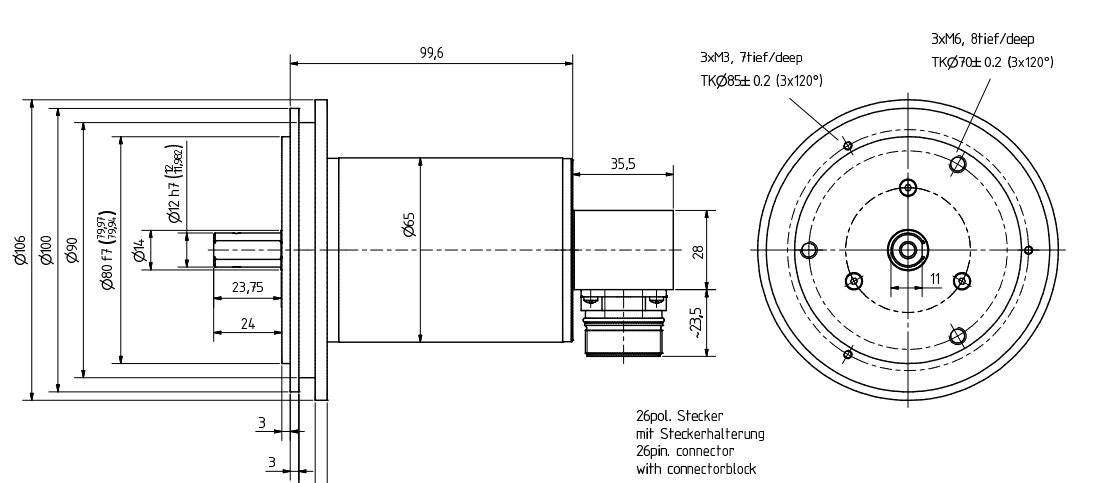

DRAWING NO.04 - CEV5M - M0804
VERSION NO158
PARAMETER FILECEV5M - 0 - 3314
FIRMWARE437865
DOCUMENTATION NODOKUMENTE
AL:N
ECCN:N
