The CEV65M-03477 (ALT:110-03477) Parallel Encoder Replacement Solution is designed to provide a dependable and precise alternative for users needing to replace or maintain existing parallel absolute encoder systems. Each unit is manufactured with 1:1 parameter matching, including resolution, mechanical dimensions, and parallel output configuration, ensuring seamless integration into existing automation setups without requiring hardware modification or software adjustments. With a typical production and delivery time of 10–15 working days, this solution offers a fast and reliable option for spare parts or discontinued model replacements.

Built with high-quality industrial materials and advanced signal processing technology, this parallel encoder delivers stable operation, accurate position feedback, and long-term durability in demanding industrial environments. It is ideal for use in automated production lines, robotics, motion control systems, and conveyor applications where precision and reliability are essential.

These replacement encoders have been successfully applied across Europe, the Middle East, South America, Southeast Asia, and other regions. Customers appreciate their consistent performance, robust design, and cost-effective maintenance advantages, making them a trusted solution for maintaining continuous operation and maximizing the service life of automation systems.

CEV65M-03477 (ALT:110-03477) Parallel Encoder Replacement Solution-LinkChina

Technical data

Parameter ItemValue
NO. OF STEPS/REV10,000
NO. OF REVOLUTIONS2,048,000
PARAMETERIZABLEPROG
INTERFACEPARALLEL PUSH PULL
CODEGRAY
SUPPLY VOLTAGE11 - 27V
OUTPUT LEVEL11 - 27V
PROTECTION ClassIP65
OPERATING TEMPERATURE-20 + 70°C
FLANGE TYPEZ880 UNI
SHAFT TYPE12RL/Z4
CONNECTOR TYPECONTACT 26P
CONNECTOR - POSITIONAXIAL
PINOUT NO.ST193C
MATING PLUGNO
OPTIONS ENC/FR
OPTIONS ENCLATCH
OPTIONS ENCPRESET 1
OPTIONS ENCPROGRAMMABLE

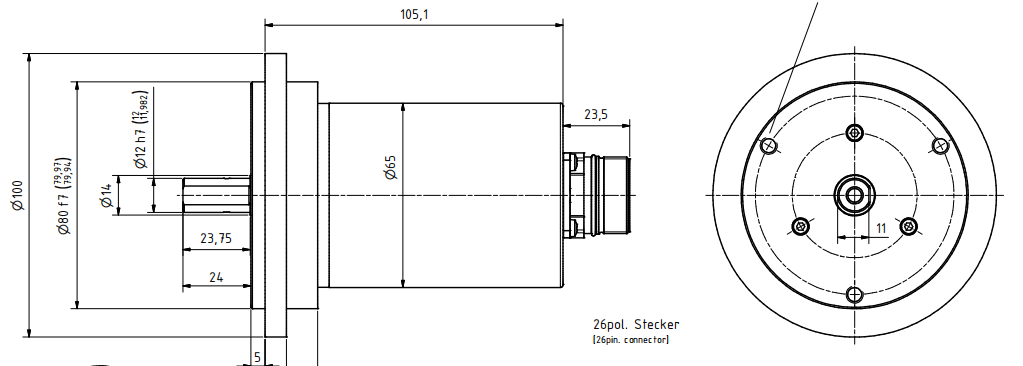

DRAWING NO.04 - CEV5SM - M0935
VERSIONNO138
PARAMETER FILECEV5SM - 03477
FRMWARE NO437865
DOCUMENTATION NODOKUMENTE
AL:N
ECCN:N
