For the BTF13-A1AM0520 model, we offer a high-quality cable pull displacement sensor replacement solution designed for reliable operation in demanding industrial environments. This replacement unit is fully compatible with the original mounting and mechanical interface, allowing seamless installation without structural modification. With a standard lead time of 10 working days, it provides a practical option for users requiring timely replacement or system maintenance.
The product features a precision cable mechanism that ensures stable and repeatable displacement feedback. It is suitable for applications involving linear motion detection, stroke control, and position monitoring. Its rugged mechanical structure and well-engineered internal components contribute to excellent durability and long-term stability, ensuring consistent measurement performance even under continuous operation.

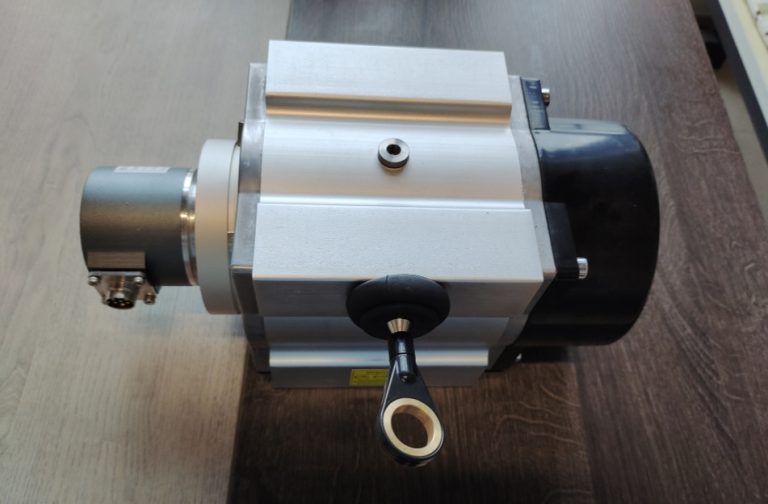

Reference image
Technical Data
Performance
| Measurement range | 0m...5m |
|---|---|
| Encoder | Absolute encoders |
| Resolution (wire draw +encoder) | 0.05 mm |
| Repeatability | S1 mm |
| Linearity | <±2mm |
| Hysteresis | < 2 mm |
Interfaces
| Communication interface |
|---|
| Programmable/configurable |
Electronics
| Connection type | Male connector, M23,12-pin, radial |
|---|---|
| Supply voltage | 10V...32 V |
| Power consumption | s0.8W (without load) |
Mechanics
| Weight | 3.3kg |
|---|---|
| Measuring wire material | Highly flexible stranded steel 1,4401 stainless steel V4A |
| Measuring wire diameter | 1.35 mm |
| Weight (measuring wire) | 7.1g/m |
| Housing material,wire draw mechanism | Aluminum (anodised),plastic |
| Spring return force | 15N...2 N |
| Length of wire puled out per revolution | 334.1mm |
| Life of wire draw mechanism | Typ.1,000,00ccles |
| Actual wire draw length | 5.2m |
| Wire acceleration | 70m/s2 |
| Operating speed | 8m/s |
| Mounted encoder | ATM60 SSI, ATM60-A1AO-K19,1034294 |
| Mounted mechanic | MRA-F130-105D2,6028626 |
Ambient data
| EMC | According to EN 61000-6-2 and EN 610006-3 |
|---|---|
| Enclosure rating | IP64, mounted mechanic |
| Operating temperature range | 20°C...+70°C |
