The CES65M-00027 Profibus absolute encoder is a widely used model in automation and motion control. To meet customer needs when sourcing this encoder becomes difficult, we provide a customized replacement solution based on 1:1 application parameters. Every detail, from the communication protocol to the mechanical dimensions, is carefully matched to the original specification. This ensures that users can quickly integrate the replacement unit into their system. Our typical production cycle is around 7–10 working days, significantly reducing downtime and offering an efficient way to overcome procurement challenges.
This replacement solution is particularly suited for use in industrial automation systems, conveyor lines, and equipment requiring precise feedback through Profibus communication. By replicating the original model’s accuracy and reliability, the customized encoder ensures stable operation even in demanding production environments, allowing end users to maintain both consistency and performance.

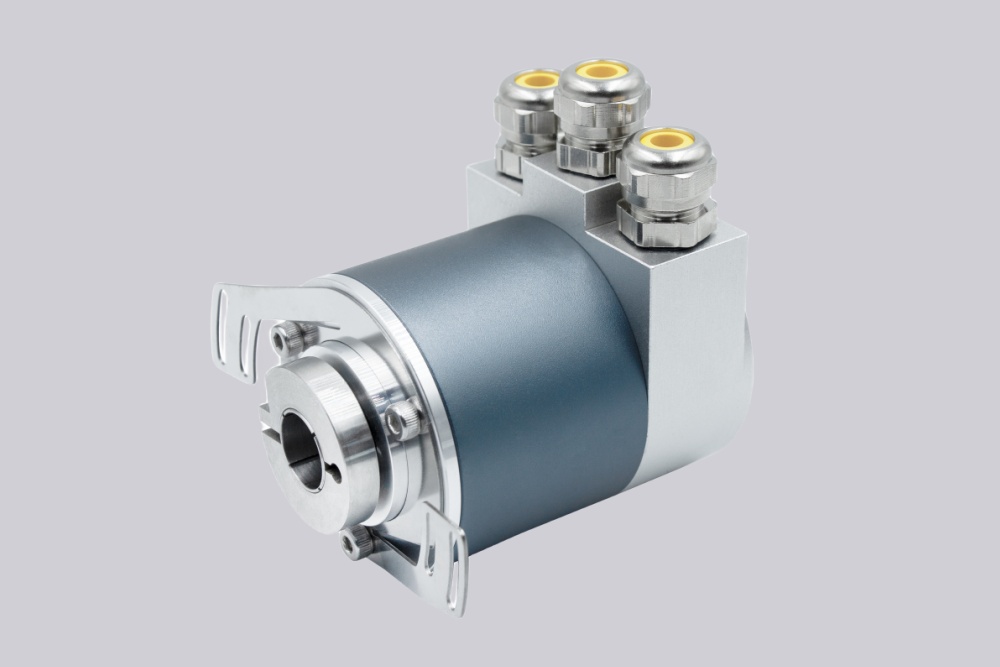

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 4,096,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| INTERFACE | PROFIBUS DP |
| CODE | PROGRAMABLE |
| SUPPLY VOLTAGE | 11 - 27V |
| OUTPUT LEVEL | RS485 |
| PROTECTION Class | IP65 |
| OPERATING TEMPERATURE | -20-+70°C |
| SHAFT TYPE | 14H7 BLIND SHAFT |
| CONNECTOR TYPE | 3XPG9 |
| CONNECTOR - POSITION | PG RADIAL |
| PINOUT NO. | TR - ECE - TI - GB - 0017 |
| OPTIONS ENC | 12MBAUDCLAMPING RING FRONT SIDEMOMENT SUPPORT SPRING 1 WINGPNO - PROFILE CLASS 2 |
| DRAWING NO. | 04 - CES65M - M0007 |
| VERSIONNO | 000 |
| FIRMWARE NO | 437826 |
