The CMW582M-00068 Ethernet absolute encoder is a high-performance model commonly used in industrial automation, motion control, and precision machinery applications. For customers encountering procurement difficulties or extended lead times, we offer a customized replacement solution that replicates the original encoder’s parameters 1:1, including mechanical dimensions, resolution, and Ethernet communication interface. This ensures seamless integration into existing systems without requiring hardware or software modifications. Our typical production cycle is 7–10 working days, allowing quick delivery and minimal disruption to operations.
This replacement solution is particularly suited for applications requiring reliable Ethernet connectivity, such as automated production lines, robotics, and industrial networked machinery. Engineered for precision, stable communication, and long-term durability, it provides accurate position feedback and consistent performance under demanding industrial conditions.

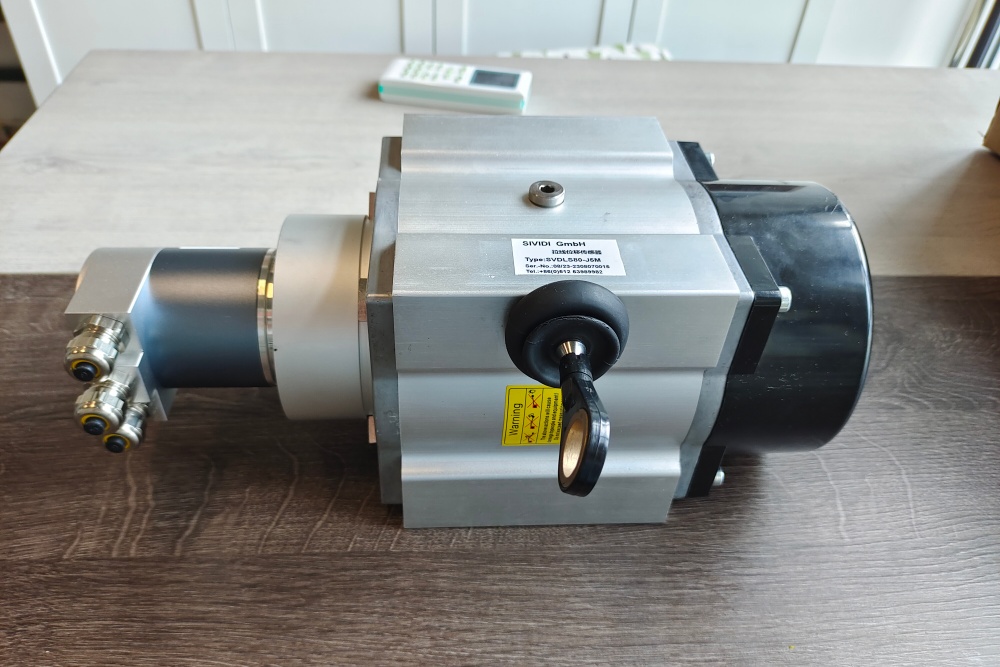

Replacement solution physical image.
Technical Data
| Parameter | Details |
|---|---|
| NO. OF STEPS/REV | 8,192,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| INTERFACE | ETHERNET IP |
| CODE | BINARY |
| SUPPLY VOLTAGE | 10 - 30V |
| PROTECTION Class | SEHKE SLG |
| OPERATING TEMPERATURE | -20°C... +75°C |
| FLANGE TYPE | DMS 2 FLÜGEL TEILKREIS 63DREHMOMENTSTUTZE (DMS) |
| SHAFT TYPE | D12H7 |
| SHAFT EXECUTION | (RLT) Rope length transmitter |
| CONNECTOR TYPE | 1x M12 4 - PIN A - CODE MALE2x M12 4 - PIN D - CODE FEMALE |
| CONNECTOR - POSITION | RADIAL |
| PINOUT NO. | TR - RCE - T0GB - 0039 |
| OPTIONS ENC | RLT ME - WDS - 200 - P96 - M - TREC |
| SLG - ORDER NO. | 40712H7 |
| DRAWING NO. | 04 - CMV582M - M002.4 |
| MTTF [y] (t = 45°C, DC = 0) >= | 100 |
| UL - APPROVALS | USA + CANADA |
| SLG - RATIO | 163.82... 16.224 mm/TURN |
| SLG - LINEARITY | +/- 0.02 % |
| SLG - TEMPERATURE RANGE | -20°C... +80°C |
| SLG - PROTECTION CLASS | IP54 / IP65 BOTTOM OUTLET |
| SLG - SPRING FORCE | min 1N / max 11N |
| SLG - ROPE DIAMETER | 0.8 mm |
| SLG - PULLOUT ANGLE | max. +/- 3° |
