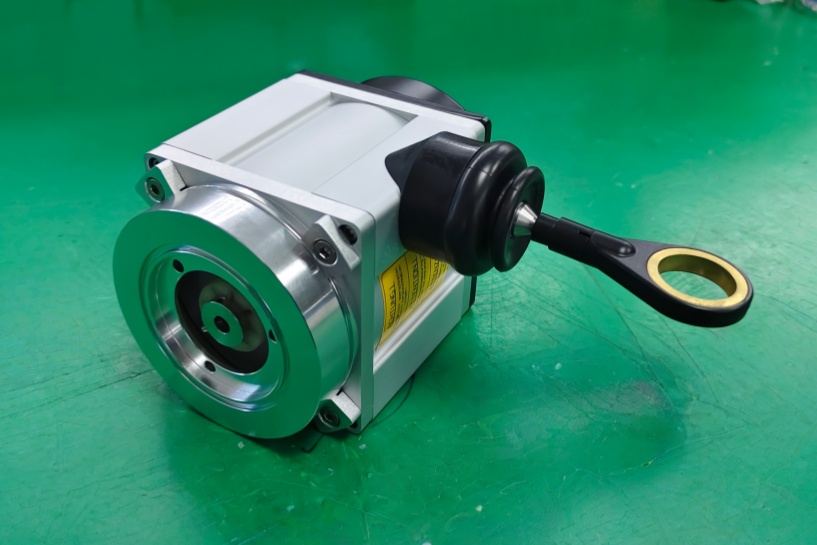

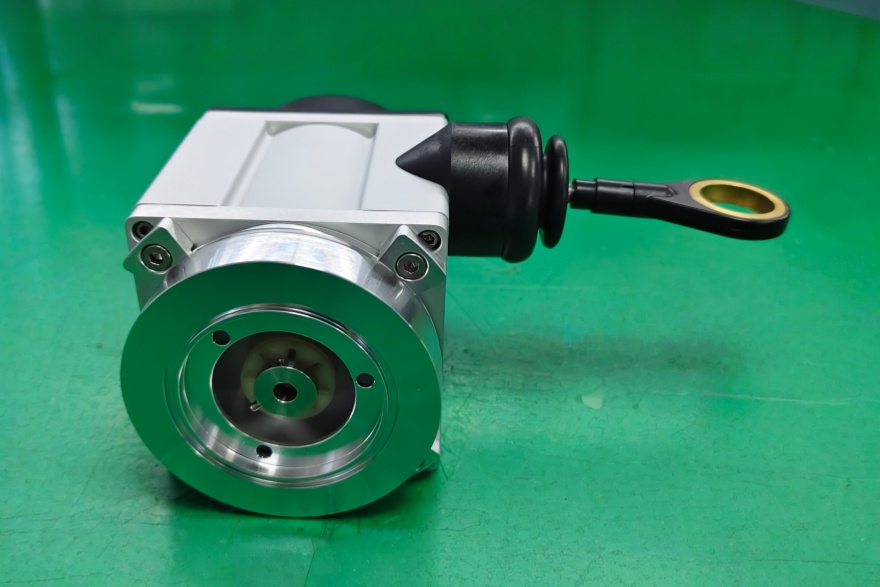

The SL02-X1/GS80 and SL03-X1/GS80 Draw-Wire Sensor Replacement Solutions are designed to provide precise and reliable alternatives for linear displacement measurement in industrial applications. Both models feature 1:1 parameter matching to the original sensors, including mechanical dimensions, cable length, and measurement range, ensuring seamless integration into existing systems without hardware modifications. With a typical production and delivery time of 10–15 working days, these replacement sensors offer a fast and effective solution for discontinued models, spare parts, or system upgrades.
Constructed with high-quality industrial materials and advanced draw-wire sensing technology, the SL02-X1/GS80 and SL03-X1/GS80 deliver accurate position feedback, stable signal output, and long-term operational reliability. Their smooth and repeatable measurement performance makes them ideal for applications in automated production lines, robotics, material handling systems, and other motion control environments where precision and durability are essential.
These replacement sensors have been successfully deployed in global markets, including Europe, Southeast Asia, and South America. Customers appreciate their robust design, consistent performance, and cost-effective maintenance benefits, making them a trusted solution for maintaining continuous operation and extending the service life of industrial automation equipment.
Technical data
General specifications
Parameter Item
Value
Measuring range
2000 mm or 3000 mm
Travel speed
max. 4 m/s
Acceleration
max. 40 m/s²
Drum perimeter
200 mm
Resolution
200 mm / steps per revolution of mounted encoder
Ambient conditions
Parameter Item
Value
Ambient temperature
-30...70°C (-22...158°F)
Shock resistance
25 g
Mechanical specifications
Parameter Item
Value
Shaft dimensions ∅ x l
6 mm x 10 mm, servo flange
Rope diameter
0.55 mm
Tension force at rope
5…15 N
Protection degree
IP65
Material - Housing
anodized aluminum
Material - Rope
Stainless steel 1.4401/316L
Mass
1000 g
Dimensions - A
34.7 mm
Dimensions - B
78.2 mm
Dimensions - C
34.7 mm
Dimensions - D
50 mm
Dimensions - E
80 mm
Dimensions - F
approx. 115 mm
Dimensions - G
30.5 mm
Dimensions - M
M6 x 7
Life span
10⁶ Cycles
General Information
Parameter Item
Value
Scope of delivery
Cable pull, Coupling
