We offer an OEM-grade 1:1 replacement solution for the CE58-0720EB01 parallel absolute encoder, developed through a flexible non-standard customization process. This solution helps customers overcome supply chain limitations, outdated equipment replacement, and long procurement cycles. The product fully replicates the original encoder’s mechanical dimensions, shaft configuration, housing layout, connector type, and parallel signal characteristics. Installation can be completed directly on existing equipment without additional brackets, mechanical rework, or PLC program changes, ensuring a smooth and risk-free upgrade process.
The replacement solution has been actively used by customers across the Middle East, Russia, Indonesia, Brazil, Southeast Asia, and Ukraine. It is well recognized for stable performance, dependable signal transmission, and competitive pricing. Our manufacturing system enables a shortened production cycle of 15 working days, helping customers speed up maintenance operations and minimize unexpected downtime. This combination of delivery speed, product stability, and economic efficiency makes it a preferred alternative in global industrial markets.

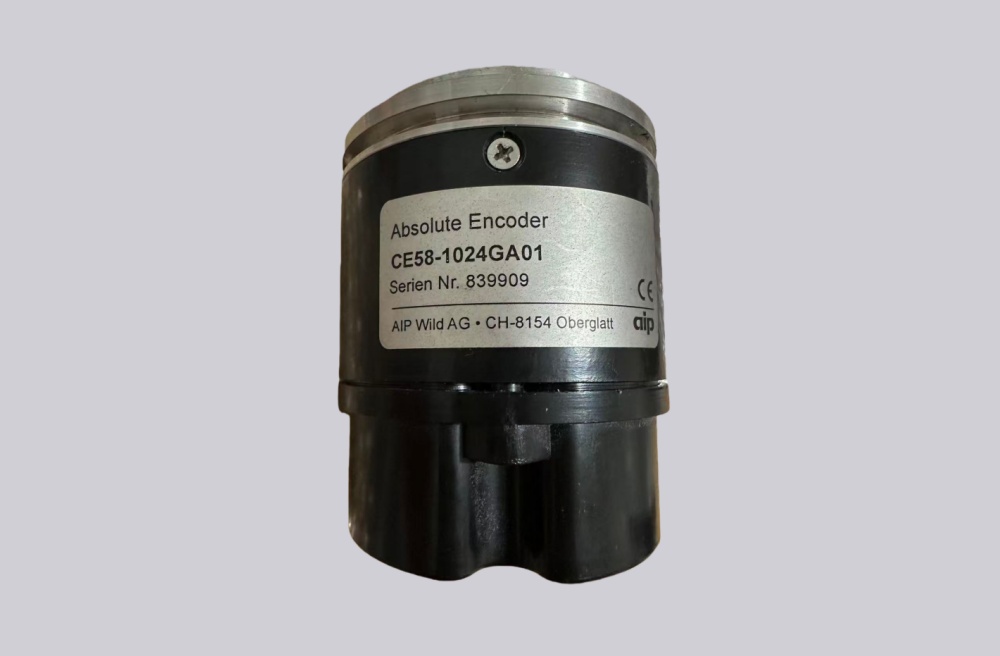

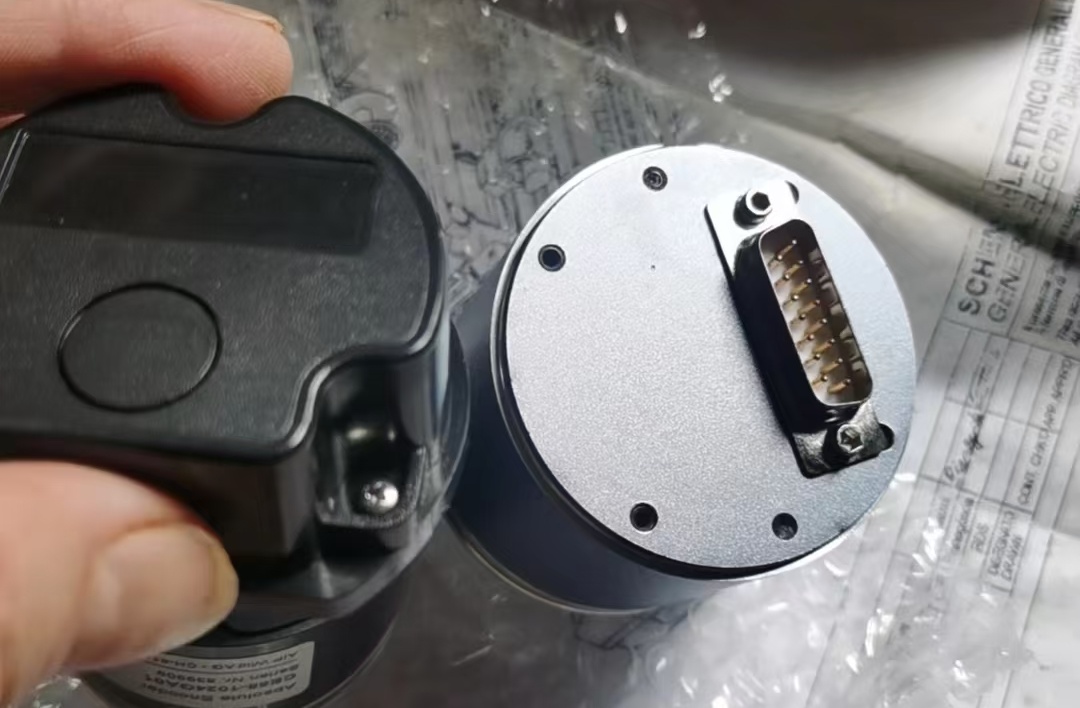

Reference Images
Technical data
| Sensor system | GaAlAs diode, photo-transistor array |
| Parallel outputs circuits A | Open collector Darlington |
| Parallel outputs circuits B | Open collector, TTL compatible |
| Parallel outputs circuits C | Open emitter Darlington |
| Supply voltage range | +10.5 V to 26.5 VDC |
| Supply current | 50 mA |
| Output frequency | 30 kHz max. |
| Measurement position deviation | 10° |
| Disc coding | 10 bit |
| Code sense | Gray code or Gray-Excess (CW or CCW selectable by connecting MSB or LSB) |
| Enable circuit (for bus operation) | Active or inactive (Signal input ET) |
| Operating speed (continuous) | 3000 rpm max. |
| Operating speed (short period) | 4000 rpm max. |
| Inertial mass of rotor | 35 gcm² |
| Operating torque | ≤ 1 Ncm |
| Wind-up torque | ≤ 0.2 Ncm |
| Permissible axial and radial shaft load | 100 N |
| Bearing life expectancy | 10⁸ revolutions |
| Operating temperature range | -5°C to +60°C |
| Storage temperature range | –25°C to +70°C |
| Resistance to shock | 200 m/s², 11 ms |
| Resistance to vibration | 5 Hz ... 1000 Hz; 100 m/s² |
| Protection | IP 65 when used with the supplied connector cover |
| Mass | 240 g |
