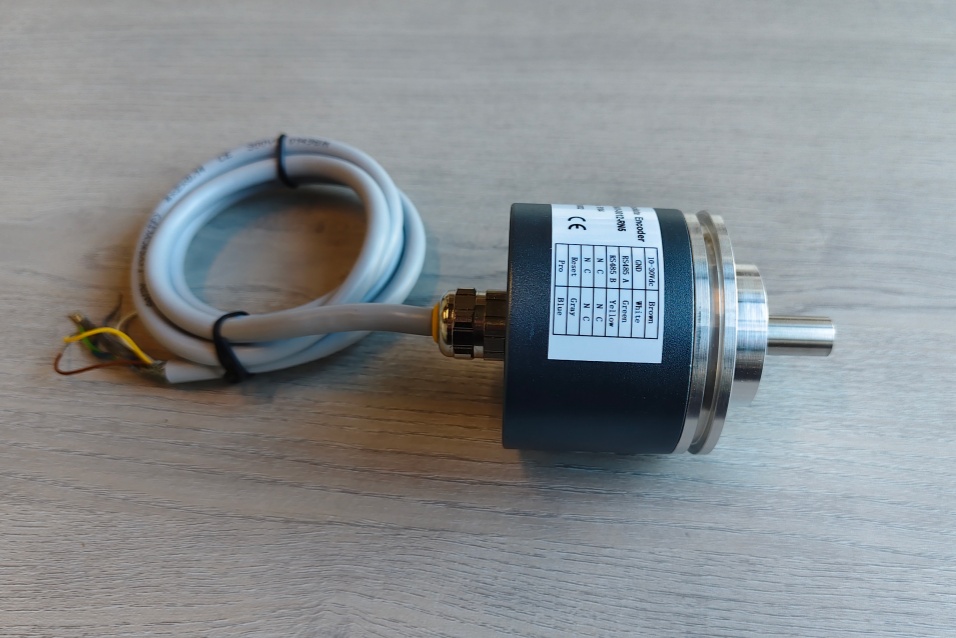

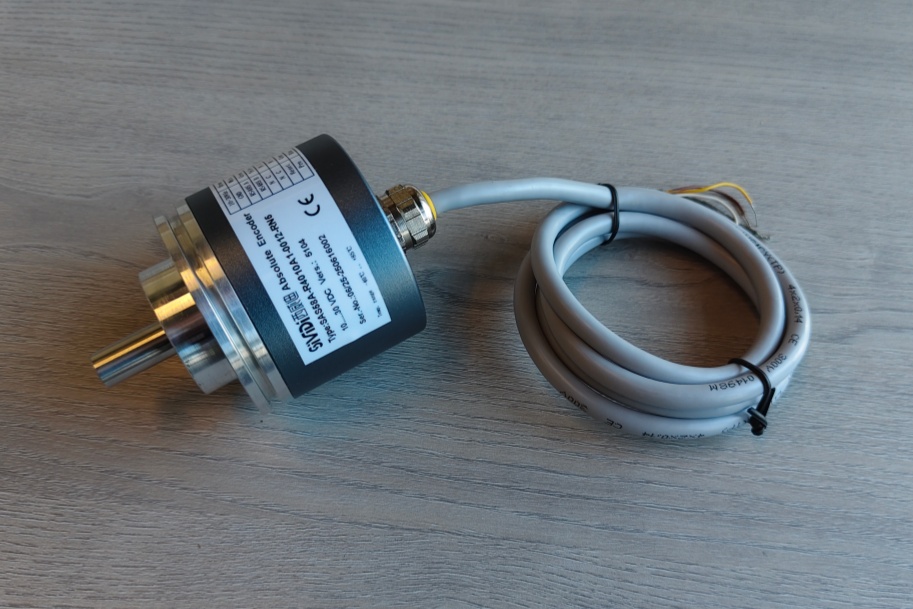

The 110-00295 Parallel Encoder Replacement Solution provides a precise and reliable alternative for users needing to replace or maintain legacy parallel output encoders in industrial automation systems. Each unit is engineered with 1:1 parameter matching, including mechanical dimensions, resolution, and parallel output configuration, ensuring seamless integration into existing equipment without requiring hardware modifications or software adjustments. Typical production and delivery time is 10–15 working days, offering a fast and practical solution for discontinued models or urgent spare part needs.
Constructed with industrial-grade components and advanced optical sensing technology, this encoder guarantees accurate position feedback, stable signal output, and long-term operational reliability. It is suitable for a wide range of applications, including automated production lines, conveyor systems, robotics, and motion control machinery where precision and durability are critical.
The 110-00295 replacement encoders have been successfully deployed across Europe, South America, the Middle East, and Southeast Asia. Customers consistently value their robust construction, consistent performance, and cost-effective maintenance benefits, making them a dependable choice for sustaining continuous operation and extending the service life of industrial automation equipment.
Technical data
| Parameter Item | Value |
|---|---|
| NO. OF STEPS/REV | 4,096,000 |
| NO. OF REVOLUTIONS | 4,096,000 |
| PROGRAMMABLE | PROG. |
| INTERFACE | PARALLEL PUSH PULL |
| CODE | PROGRAMMABLE |
| SUPPLY VOLTAGE | 11-27V |
| OUTPUT LEVEL | 11-27V |
| PROTECTION Class | IP54 |
| TEMPERATURE RANGE | 0-60°C |
| FLANGE TYPE | ZB50 |
| SHAFT TYPE | 10FL/19.5 |
| CONNECTOR TYPE | CONTACT 26P |
| CONNECTOR-POSITION | |
| cable length (m) | |
| PINOUT NO. | ST371 |
| MATING PLUG | YES |
| OPTIONS ENC | PROGRAMMABLE |
| DRAWING NO. | 04-418-144 |
| VERSIONNO | 001 |
| PARAMETER FILE | 8313N |
| FIRMWARE NO | 909 |
| DOCUMENTATION NO | DOKUMENTE |
| AL: | N |
| ECCN: | N |
| MIT[μ] (T=45°C, DC=0) >= | 200 |
